Runner

To run workspaces, a runner is required. The runner connects to the Codebox server and is used to manage workspaces. You can find a guide here on how to set up a runner.

Warning

A runner can be connected to only one server. If you want to share a machine across multiple Codebox instances, you need to define a separate runner for each instance.

Warning

A runner can be registered only by administrators.

Register new runner

Before starting a new runner instance, you must first register it on the Codebox server. This process will generate a token and an ID for the runner. You can find a guide on how to create a new runner here:

  1. Go to the Admin Area by clicking on ‘Admin Area’ in the dropdown menu under your user details in the top-right corner.

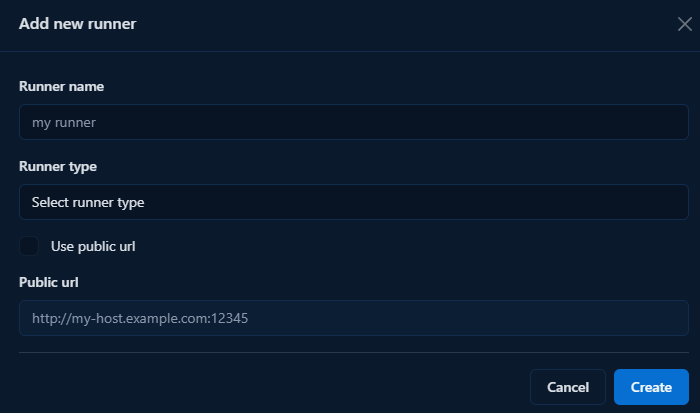

  1. Under the section ‘Runners’ click on ‘Add new runner’

  1. Enter the name and type of the runner. If you want to use a public URL, also provide the runner’s public URL. (Note: using a public URL is more stable but requires that the server can reach the runner.)

  1. Copy the ID and token — you’re now ready to install the Runner.

Deploy the runner

The recommended installation procedure involves using the Docker stack defined in the docker-compose.yml file found in the runner repository.

Debian package installation

As an alternative to the containerized deployment, Codebox Runner can be installed using the Debian package available from the project’s release page.

Note

The Docker Compose deployment remains the recommended installation method.

When using the Debian package, Docker, Docker Compose and Dev Containers support must be installed and configured manually on the host machine.

Install the package using your preferred package manager:

sudo dpkg -i codebox-runner_<version>_amd64.deb

The package installs and registers the codebox-runner service automatically. Before starting the service for the first time, you must configure the environment file:

sudo nano /etc/codebox-runner/codebox-runner.env

Configure the following variables:

  • CODEBOX_SERVER_URL: the URL of the Codebox instance where the runner is registered.

  • CODEBOX_RUNNER_ID: the unique ID of the runner.

  • CODEBOX_TOKEN: the token used to authenticate the runner with the server.

  • CODEBOX_RUNNER_EXTERNAL_URL: the public URL of the runner. Agents running inside containers or VMs will use this URL to connect back to the runner.

  • CODEBOX_OBJECTS_PREFIX: a prefix added to the names of generated objects. Change this if you’re running multiple runners on the same machine to avoid naming conflicts.

  • CODEBOX_RUNNER_EXPOSED_PORT: the external port on which the runner is exposed.

Once the configuration file has been updated, start the service manually for the first time:

sudo systemctl start codebox-runner

You can verify that the runner is running correctly with:

sudo systemctl status codebox-runner

Updating the runner

The update procedure depends on the installation method used.

Docker Compose deployment

When using the Docker deployment, updating the runner simply requires changing the image tag in the docker-compose.yml file and recreating the container:

docker compose pull
docker compose up -d

Debian package installation

When using the Debian package, updating the runner consists of installing the new package version:

sudo dpkg -i codebox-runner_<new_version>_amd64.deb

The installation process automatically updates the existing installation and restarts the codebox-runner service, so no manual restart is required after the upgrade.

Timeouts

The Codebox runner has specific timeouts for its start, stop, and delete operations. These are implemented to prevent a workspace from becoming unrecoverable. The default values are:

Operation

Default Timeout

Start/Update

1200 seconds

Stop

600 seconds

Delete

600 seconds

These values can be overridden using environment variables:

Env var

Description

CODEBOX_WORKSPACE_START_TIMEOUT_SECONDS

The timeout value (in seconds) for start and update tasks

CODEBOX_WORKSPACE_STOP_TIMEOUT_SECONDS

The timeout value (in seconds) for stop tasks

CODEBOX_WORKSPACE_DELETE_TIMEOUT_SECONDS

The timeout value (in seconds) for delete tasks
